GridHelper

This package offers utilitary API to help with operations on 2D and 3D grids such as tile extraction, raycasting, and pathfinding.

! 3D API IS STILL EXPERIMENTAL !

Comes with several demo examples.

See online documentation

Get the Unity package

See my other Unity packages

Complete API Documentation

Online Demos

Usage

All you need to use this API is a two-dimensional array (three-dimensional for 3D API) of tiles.

What is a tile ? Any object (custom class, struct, component, …) that implements the very light ITile interface of this library (ITile3D for the 3D API). This interface requires four properties getters (five for 3D API):

bool IsWalkable . Must return if the tile can be walk/see throught (for pathfinding/raycasting)
float Weight . Must return the tile’s weight (the ‘cost’ it will takes to walk throught that tile). Minimum is 1.
int X . Must return the horizontal position of the tile into the grid
int Y . Must return the vertical position of the tile into the grid
int Z . Must return the depth position of the tile into the grid (only for the 3D API and its ITile3D interface)

This API is using a namespace so you have to add a using instruction to the scripts that will need this library:

using KevinCastejon.GridHelper;

or for the 3D API:

using KevinCastejon.GridHelper3D;

2D API

MajorOrder

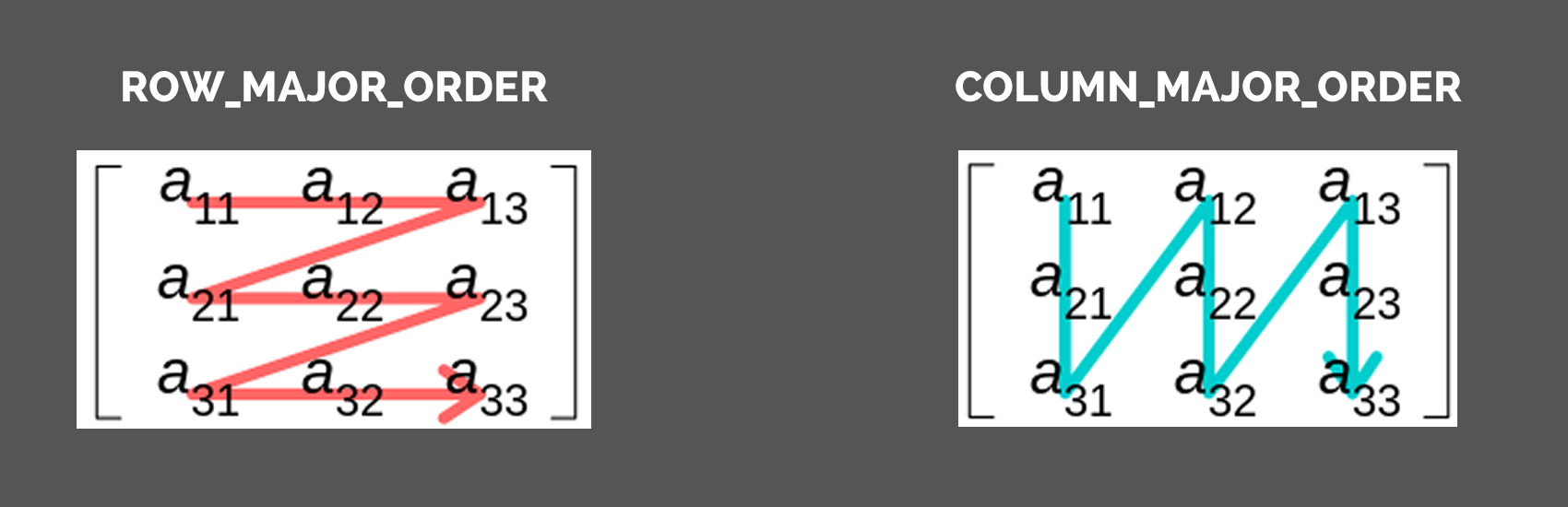

When working with two-dimensional arrays there is two ways of storing tiles, first rows then lines or the opposite.
This is called the Major Order, you can specify it on the last parameter of each method that uses a grid.

DEFAULT : Refers to the global setting DefaultMajorOrder value
ROW_MAJOR_ORDER : YX. First index is rows, second is columns
COLUMN_MAJOR_ORDER : XY. First index is columns, second is rows
MajorOrderSchema

- Extraction

Allows you to extract tiles on a grid.
Provides shape extraction (rectangles, circles, cones and lines) and neighbors extraction with a lot of parameters.

You can extract tiles from shapes.

GetTilesInARectangle

YourCustomTileType[] tiles = Extraction.GetTilesInARectangle(grid, centerTile, rectangleSize);

GetTilesInACircle

YourCustomTileType[] tiles = Extraction.GetTilesInACircle(grid, centerTile, radius);

GetTilesInACone

YourCustomTileType[] tiles = Extraction.GetTilesInACone(grid, startTile, length, openingAngle, direction);

GetTilesOnALine

YourCustomTileType[] tiles = Extraction.GetTilesOnALine(grid, startTile, length, direction);

You can extract neighbors of a tile (if existing).

GetTileNeighbour

YourCustomTileType upperNeighbour = Extraction.GetTileNeighbour(grid, tile, Vector2Int.up);

GetTileNeighbours

YourCustomTileType[] neighbours = Extraction.GetTileNeighbours(grid, tile);

GetTileOrthogonalsNeighbours

YourCustomTileType[] orthogonalNeighbours = Extraction.GetTileOrthogonalsNeighbours(grid, tile);

GetTileDiagonalsNeighbours

YourCustomTileType[] diagonalsNeighbours = Extraction.GetTileDiagonalsNeighbours(grid, tile);

Each extraction method has a variant to check if a specific tile would be extracted

IsTileInARectangle

bool isTileInARectangle = Extraction3D.IsTileInARectangle(grid, tile, centerTile, rectangleSize);

IsTileInACircle

bool isTileInACircle = Extraction3D.IsTileInACircle(grid, tile, centerTile, radius);

IsTileInACone

bool isTileInACone = Extraction.IsTileInACone(grid, tile, centerTile, length, openingAngle, direction);

IsTilesOnALine

bool isTilesOnALine = Extraction.IsTilesOnALine(grid, tile, centerTile, length, direction);

IsTileNeighbor

bool isTileRightNeighbor = Extraction.IsTileNeighbor(tile, neighbor, Vector2Int.right);

IsTileOrthogonalNeighbor

bool isTileOrthogonalNeighbor = Extraction.IsTileOrthogonalNeighbor(tile, neighbor);

IsTileDiagonalNeighbor

bool isTileDiagonalNeighbor = Extraction.IsTileDiagonalNeighbor(tile, neighbor);

IsTileAnyNeighbor

bool isTileNeighbor = Extraction.IsTileAnyNeighbor(tile, neighbor);

- Raycasting

Allows you to cast lines of sight and cones of vision on a grid

You can get the line of sight from a tile (a line that “stops” at the first encountered unwalkable tile).
Many signatures are available to specify the length and direction of the line.

GetLineOfSight
```
YourCustomTileType[] lineOfSight = Raycasting.GetLineOfSight(grid, startTile, destinationTile);
```
You can get the cone of vision from a tile.
Many signatures are available to specify the length and direction of the cone.

GetConeOfVision

YourCustomTileType[] coneOfVision = Raycasting.GetConeOfVision(grid, startTile, openingAngle, destinationTile);

You can check if a line of sight or a cone of vision is clear (no non-walkable tile encountered)

IsLineOfSightClear

bool isLineClear = Raycasting.IsLineOfSightClear(grid, startTile, destinationTile);

IsConeOfVisionClear

bool isConeClear = Raycasting.IsConeOfVisionClear(grid, startTile, destinationTile);

- Pathfinding

Allows you to calculate paths between tiles.
This API offers several way of doing pathfinding.
You can calculate the path directly every time you need (with the CalculatePath method), but this can become heavy if you do it too frequently.
Instead, you can generate objects that will hold multiple paths data that can be reused later. There is two types of objects that you can generate:

PathMap - Will calculate and hold all the paths to a specific tile from every accessible tiles
PathGrid - Will calculate and hold all the paths between each tiles on the entire grid

Note that, obviously, any path calculation is valid as long as the walkable state of the tiles remain unchanged

You can directly calculate the path between two tiles. If there is no path between the two tiles then an empty array will be returned.
You can specify a pathfindingPolicy parameter that holds parameters relating to diagonals and allowed movements. (see PathfindingPolicy)

Note that this method uses a Djikstra algorythm which can be quite intensive

CalculatePath

YourCustomTileType[] path = Pathfinding.CalculatePath(grid, startTile, destinationTile);

You can also calculate the path between a start tile and the closest of several destination tiles. Just pass an array of tiles instead of unique tile as third parameter.

PathMap

You can generate a PathMap object that holds pre-calculated paths data.
This way of doing pathfinding is useful for some usages (like Tower Defenses and more) because it calculates once all the paths between one tile, called the “target”, and all the accessible tiles from it. (The PathMap generation uses Dijkstra algorithm).

To generate the PathMap object, use the GeneratePathMap method that needs the grid and the target tile from which to calculate the paths, as parameters.

You can use an optional maxDistance parameter that limits the paths calculation to an amount of distance (movement ‘cost’ taking into account the tiles weights). Default is 0 and means no distance limit (paths to all accessible tiles, means with a clear path, from the target will be calculated).

You can specify a pathfindingPolicy parameter that holds parameters relating to diagonals and allowed movements. (see PathfindingPolicy)

Note that a PathMap generation uses a Djikstra algorythm which can be quite intensive, same as the direct path calculation method but is intended to be used less often as the calculated paths hold by the PathMap can be reused with nearly “no cost”

PathMap<YourCustomTileType> pathMap = Pathfinding.GeneratePathMap(grid, targetTile);

Once the PathMap object is generated, you can use its several and almost “cost free” methods and properties.

You can retrieve the tile that has been used as the target to generate this PathMap

Target

YourCustomTileType tile = pathMap.Target;

You can retrieve the maxDistance parameter value that has been used to generate this PathMap. 0 means no distance limit

MaxDistance

float maxDistance = pathMap.MaxDistance;

You can retrieve the majorOrder parameter value that has been used to generate this PathMap

MajorOrder
```
MajorOrder majorOrder = pathMap.MajorOrder;
```
You can get all the accessible tiles from the target tile.

GetAccessibleTiles

YourCustomTileType[] tiles = GridHelper.GetAccessibleTiles();

You can get all the tiles on the path from a tile to the target.

GetPathToTarget

YourCustomTileType[] tiles = pathMap.GetPathToTarget(startTile);

Or you can get all the tiles on the path from the target to a tile.

GetPathFromTarget

YourCustomTileType[] tiles = pathMap.GetPathFromTarget(destinationTile);

You can know if a tile is accessible from the target tile. This is useful before calling the following PathMap methods that only takes an accessible tile as parameter.

IsTileAccessible

bool isTileAccessible = pathMap.IsTileAccessible(tile);

You can get the next tile on the path between the target and a tile.

GetNextTileFromTile

YourCustomTileType nextTile = pathMap.GetNextTileFromTile(tile);

You can get the next tile direction on the path between the target and a tile (in 2D grid coordinates).

GetNextTileDirectionFromTile

Vector2 nextTileDirection = pathMap.GetNextTileDirectionFromTile(tile);

You can get the distance to the target from a tile.

GetDistanceToTargetFromTile

float cost = pathMap.GetDistanceToTargetFromTile(tile);

PathGrid

You can generate a PathGrid object that holds pre-calculated paths data.
This way of doing pathfinding is useful for some usages because it calculates once all the paths between each tile on the entire grid. (The PathGrid generation uses Dijkstra algorithm on each tile of the grid).

To generate the PathGrid object, use the GeneratePathGrid method that needs the grid as parameter.

You can specify a pathfindingPolicy parameter that holds parameters relating to diagonals and allowed movements. (see PathfindingPolicy)

Note that a PathGrid generation uses a Djikstra algorythm on each tile of the grid which can be really intensive. Hopefully, in the future, asynchronous features will be added.

PathGrid<YourCustomTileType> pathGrid = Pathfinding.GeneratePathGrid(grid);

Once the PathGrid object is generated, you can use its several and almost “cost free” methods and properties.

You can retrieve the majorOrder parameter value that has been used to generate this PathMap

MajorOrder
```
MajorOrder majorOrder = pathMap.MajorOrder;
```
You can know if there is a clear path between two tiles.

IsPath

bool isPath = GridHelper.IsPath(startTile, destinationTile);

You can get all the tiles on the path from a start tile to a destination tile. If there is no path between the two tiles then an empty array will be returned.

GetPath

YourCustomTileType[] path = pathMap.GetPath(startTile, destinationTile);

You can get the next tile on the path from a start tile to the destination tile.

GetNextTileFromTile

YourCustomTileType nextTile = pathMap.GetNextTileFromTile(startTile, destinationTile);

You can get the next tile direction on the path from a start tile to the destination tile (in 2D grid coordinates).

GetNextTileDirectionFromTile

Vector2 nextTileDirection = pathMap.GetNextTileDirectionFromTile(startTile, destinationTile);

You can get the distance (movement cost) from a start tile to the destination tile.

GetDistanceBetweenTiles

float cost = pathMap.GetDistanceBetweenTiles(startTile, destinationTile);

- PathfindingPolicy

The PathfindingPolicy object holds settings relating to diagonals and allowed movements.

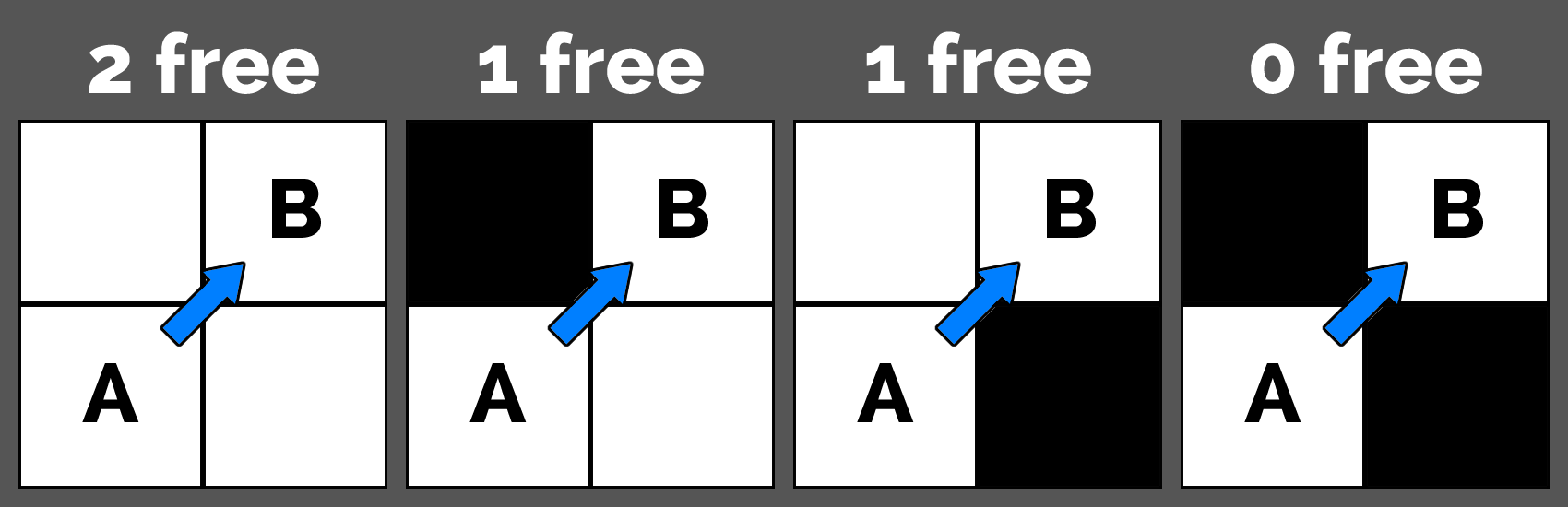

You can set the DiagonalsPolicy that represents the diagonals permissiveness. When going diagonally from a tile A to tile B in 2D grid, there are two more tile involved, the ones that are both facing neighbours of the A and B tiles. You can allow diagonals movement depending on the walkable status of these tiles.

DiagonalsPolicy
```
pathfindingPolicy.DiagonalsPolicy = DiagonalsPolicy.ALL_DIAGONALS;
```
- NONE : no diagonal movement allowed
- DIAGONAL_2FREE : only diagonal movements, with two walkable facing neighbours common to the start and destination tiles, are allowed
- DIAGONAL_1FREE : only diagonal movements, with one walkable facing neighbour common to the start and destination tiles, are allowed
- ALL_DIAGONALS : all diagonal movements allowed

DiagonalsPolicySchema

You can set the diagonals weight ratio multiplier that will increase the tile’s weight when moving to it diagonally.

Minimum is 1. Default is 1.4142135623730950488016887242097.

Note that setting diagonals weight to 1 can lead to unpredictable behaviours on pathfinding as a diagonal move would have the same cost than orthogonal one, so the paths could become “serrated” (but still the shortests!).

DiagonalsWeight

pathfindingPolicy.DiagonalsWeight = 1.5f;

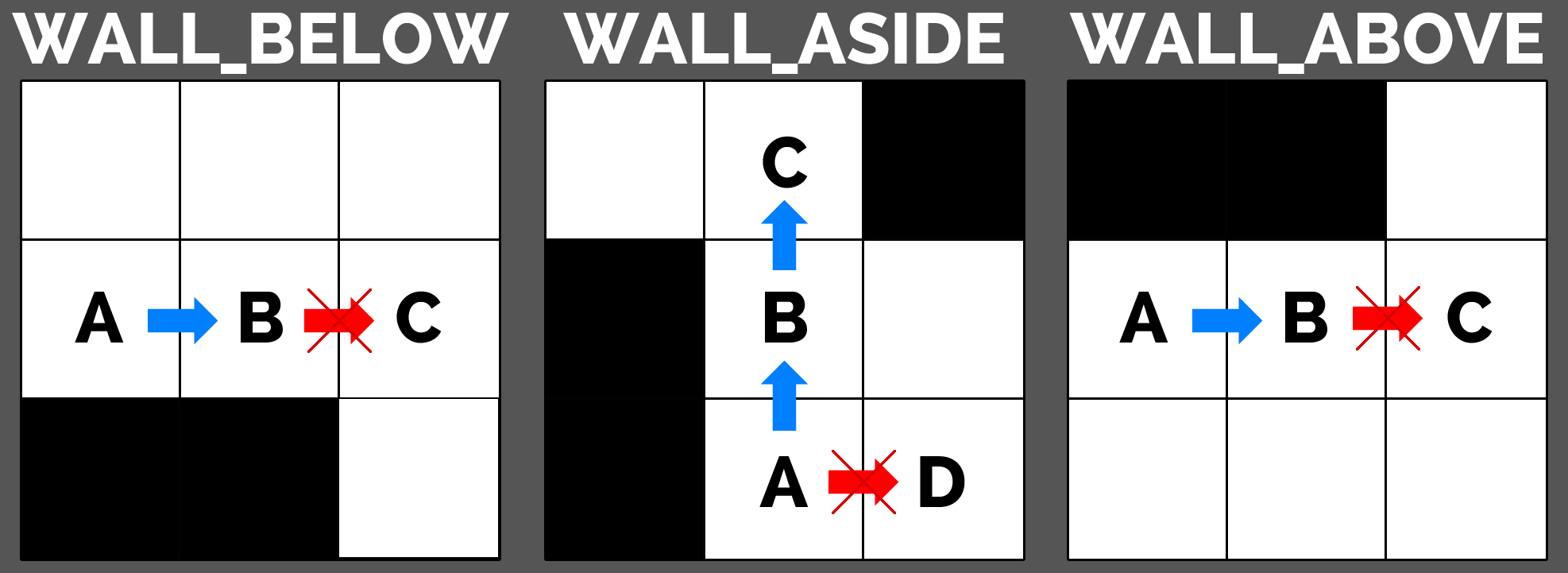

You can set the MovementPolicy that represents the movement permissiveness. It is useful to allow special movement, especially for side-view games, such as spiders that can walk on walls or roofs, or flying characters. Default is FLY. Top-down view grid based games should not use other value than the default as they do not hold concept of “gravity” nor “up-and-down”.

Note that this parameter is a flag enumeration, so you can cumulate multiple states, the FLY state being the most permissive and making useless its combination with any other one.

MovementPolicy
```
pathfindingPolicy.MovementPolicy = MovementPolicy.ALL_DIAGONALS;
```
- FLY : all walkable tiles can be walk thought
- WALL_BELOW : the walkable tiles that has a not-walkable lower neighbour can be walk thought
- WALL_ASIDE : the walkable tiles that has a not-walkable side neighbour can be walk thought
- WALL_ABOVE : the walkable tiles that has a not-walkable upper neighbour can be walk thought

MovementPolicySchema

3D API

- Extraction3D

You can always specify a majorOrder parameter that tells which indexes order to use for the grid. Default is YXZ

You can extract tiles in a sphere, or in a cuboid, around a tile.

GetTilesInACuboid

YourCustomTileType[] tiles = Extraction3D.GetTilesInACuboid(grid, centerTile, rectangleSize);

GetTilesInASphere

YourCustomTileType[] tiles = Extraction3D.GetTilesInASphere(grid, centerTile, radius);

You can also get only the walkable tiles in a sphere/cuboid, around a tile.

GetWalkableTilesInACuboid

YourCustomTileType[] tiles = Extraction3D.GetWalkableTilesInACuboid(grid, centerTile, rectangleSize);

GetWalkableTilesInASphere

YourCustomTileType[] tiles = Extraction3D.GetWalkableTilesInASphere(grid, centerTile, radius);

You can also get only the tiles on the sphere/cuboid outline.

GetTilesOnACuboidOutline

YourCustomTileType[] tiles = Extraction3D.GetTilesOnACuboidOutline(grid, centerTile, rectangleSize);

GetTilesOnASphereOutline

YourCustomTileType[] tiles = Extraction3D.GetTilesOnASphereOutline(grid, centerTile, radius);

Finally, you can also get only the walkable tiles on the sphere/cuboid outline.

GetWalkableTilesOnACuboidOutline

YourCustomTileType[] tiles = Extraction3D.GetWalkableTilesOnACuboidOutline(grid, centerTile, rectangleSize);

GetWalkableTilesOnASphereOutline

YourCustomTileType[] tiles = Extraction3D.GetWalkableTilesOnASphereOutline(grid, centerTile, radius);

You can get neighbour of a tile (if it exists).

GetTileNeighbour

YourCustomTileType frontNeighbour = Extraction3D.GetTileNeighbour(tile, Vector3Int.forward);

Besides from extracting tiles, you can know if a specific tile is contained into a sphere/cuboid or not. Same with the outlines.

IsTileInACuboid

bool isTileInACuboid = Extraction3D.IsTileInACuboid(centerTile, tile, rectangleSize);

IsTileInACuboidOutline

bool isTileInACuboidOutline = Extraction3D.IsTileInACuboidOutline(centerTile, tile, rectangleSize);

IsTileInASphere

bool isTileInASphere = Extraction3D.IsTileInASphere(centerTile, tile, radius);

IsTileInASphereOutline

bool isTileInASphereOutline = Extraction3D.IsTileInASphereOutline(centerTile, tile, radius);

- Raycasting3D

You can always specify a majorOrder parameter that tells which indexes order to use for the grid. Default is YXZ

You can get all the tiles on a line between two tiles

GetTilesOnALine

YourCustomTileType[] tiles = Raycasting3D.GetTilesOnALine(grid, startTile, destinationTile);

You can also get only the walkable tiles on a line between two tiles

GetWalkableTilesOnALine

YourCustomTileType[] tiles = Raycasting3D.GetWalkableTilesOnALine(grid, startTile, destinationTile);

You can get the line of sight between two tiles (a line that “stops” at the first encountered unwalkable tile)

GetLineOfSight

YourCustomTileType[] tiles = Raycasting3D.GetLineOfSight(grid, startTile, destinationTile);

You can know if the line of sight between two tiles is clear (has not encountered any unwalkable tile)

IsLineOfSightClear

bool isLineClear = Raycasting3D.IsLineOfSightClear(grid, startTile, destinationTile);

- Pathfinding3D

The pathfinding part of this library generates a PathMap3D object that holds all the calculated paths data.

This way of doing pathfinding is useful for some usages (like Tower Defenses and more) because it calculates once all the paths between one tile, called the “target”, and all the others accessible tiles. (The PathMap3D generation uses Dijkstra algorithm).

To generate the PathMap3D object, use the GeneratePathMap method that needs the grid and the target tile from which to calculate the paths, as parameters.

You can use an optional maxDistance parameter that limits the paths calculation to an amount of distance (movement ‘cost’ including the tiles weights). Default is 0 and means no distance limit (paths to all accessible tiles on the entire grid will be calculated).

You can specify a pathfindingPolicy parameter that holds parameters relating to diagonals and allowed movements. (see Pathfinding3DPolicy)

You can specify a majorOrder parameter that tells which indexes order to use for the grid. Default is YXZ

PathMap3D<YourCustomTileType> pathMap = Pathfinding3D.GeneratePathMap(grid, targetTile, maxDistance);

- PathMap3D

Once the PathMap3D object is generated, you can use its several and almost “cost free” methods and properties.

You can retrieve the tile that has been used as the target to generate this PathMap3D

Target

YourCustomTileType tile = pathMap.Target;

You can retrieve the maxDistance parameter value that has been used to generate this PathMap3D

MaxDistance

float maxDistance = pathMap.MaxDistance;

You can retrieve the majorOrder parameter value that has been used to generate this PathMap3D

MajorOrder

MajorOrder3D majorOrder = pathMap.MajorOrder;

You can get all the accessible tiles from the target tile.

GetAccessibleTiles

YourCustomTileType[] tiles = GridHelper.GetAccessibleTiles();

You can get all the tiles on the path from a tile to the target.

GetPathToTarget

YourCustomTileType[] tiles = pathMap.GetPathToTarget(startTile);

Or you can get all the tiles on the path from the target to a tile.

GetPathFromTarget

YourCustomTileType[] tiles = pathMap.GetPathFromTarget(destinationTile);

- PathMap3D - other features

You can get info on a specific tile through some PathMap3D methods.

You can know if a tile is accessible from the target tile. This is useful before calling the following PathMap3D methods that only takes an accessible tile as parameter.

IsTileAccessible

bool isTileAccessible = pathMap.IsTileAccessible(tile);

You can get the distance to the target from a tile.

GetDistanceToTargetFromTile

float cost = pathMap.GetDistanceToTargetFromTile(tile);

You can get the next tile on the path between the target and a tile.

GetNextTileFromTile

YourCustomTileType nextTile = pathMap.GetNextTileFromTile(tile);

You can get the next tile direction on the path between the target and a tile (in 2D grid coordinates).

GetNextTileDirectionFromTile

Vector3 nextTileDirection = pathMap.GetNextTileDirectionFromTile(tile);
